Machining Capabilities

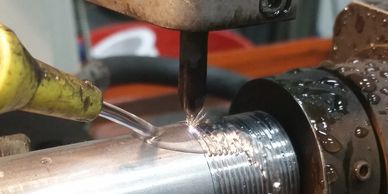

Machining

Automotive Robotics

Machining



– 6 Tsugami swiss machines – 1.5” bar capacity

– 4 Dual spindle lathes – 3” bar capacity

– 10 CNC lathes with bar feeders

– 13 CNC vertical mills

– 2 CNC 5-axis machining centers

See our 5-axis in action!

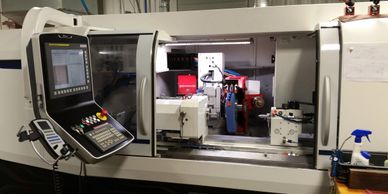

Grinding

Automotive Robotics

Machining



– 6 CNC OD grinders

– 2 CNC ID grinder

– 2 Centerless grinders

– 2 Surface grinders

– 1 Center lapping machine

– 1 Center grinder

1 Jig Grinder

Automotive Robotics

Automotive Robotics

Automotive Robotics

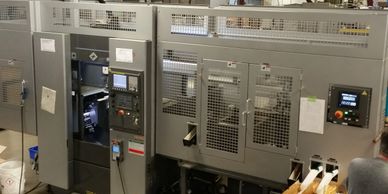

Takamaz XW-60

- Dual spindle

- Dual turret

- High speed loader

- Robotic Inspection

- Robotic wash and packaging

EDM

Specialty Equipment

Automotive Robotics

– 4 CNC Charmilles wire EDM

– 2 CNC Charmilles sinker EDM

– 4 Charmilles small hole drilling machines

Hone and Lap

Specialty Equipment

Specialty Equipment



– 1 CNC Sunnen hone SH-4000

– 11 Sunnen hone machines

– 1 CNC Sunnen cross-grinding machine

– 1 Flat lap

– 1 Plate lap

– 9 Stick lapping stations

–3 Ring lapping stations

Specialty Equipment

Specialty Equipment

Specialty Equipment

– 3 Stress relief ovens –AMS2750 /BPS4620

– 3 vacuum air quench heat treat ovens

(NADCAP accredited)

– 1 Vacuum oil quench heat treat oven

(NADCAP accredited)

– Soldering & brazing facility

(NADCAP accredited)

– Laser Part Marking

– 3 abrasive blast booths

– Specialty debur equip.

– 3 Tesa scan machines

– 25 Stereozoom microscopes

– 2 Vision measurement systems

– Material Grade Analyzer

Assembly, Test and Coil Winding Capabilities

Assembly Capabilities

Assembly Capabilities

Assembly Capabilities

  – Assembly clean room, temperature and
humidity controlled
– Shrink & press fitting, Lee plugs, helical coil
inserts, staking & coining

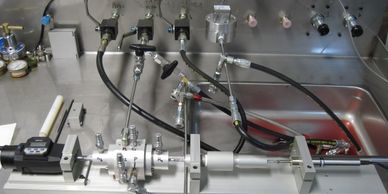

Testing Capabilities

Assembly Capabilities

Assembly Capabilities

– Flow / trim grind
– Servo and Control Valve Testing
– Automated data acquisition
– 5 Hydraulic Test Cells, 5 micron filtration:
• MIL-PRF-7024, 1500 psi, 10gpm
• MIL-PRF-6083, 6000 psi, 25gpm
• MIL-PRF-7808, 6000 psi, 5gpm
• SKYDROL, 6000 psi, 2.5gpm
• MIL-PRF-5606 up to 10,000 psi
– Flow & pressure gain, valve overlap,
hysteresis, internal & null leakage

Coil Winding

Assembly Capabilities

Coil Winding

-  CNC Servo Controlled Coil Winder

5 Axis Machining

5 Axis Machining Center using Esprit programming software
